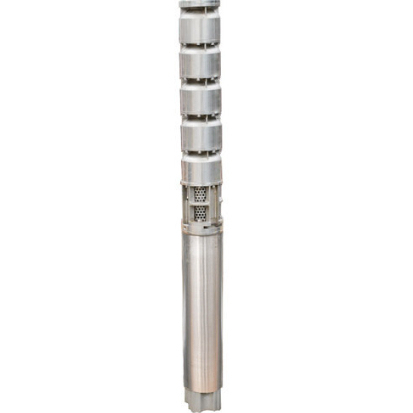

293HP (220kW) High-Flow Deep Well Submersible Pump | Suitable for agricultural irrigation, industrial water extraction, and mine drainage
This 293-horsepower (220-kilowatt) high-power deep-well submersible pump is designed for demanding applications such as deep groundwater extraction, large-scale farmland irrigation, industrial water supply, and mine drainage. It has been successfully exported to numerous countries and regions, including Southeast Asia, the Middle East, Africa, and South America, and has received widespread acclaim.
293HP (220kW) High-Flow Deep Well Submersible Pump Product Core Advantages
1. Powerful Power, Efficient Irrigation
Power: 293HP / 220kW, meeting the centralized irrigation needs of large farmlands, orchards, and greenhouses.
Wide Flow Range: Customizable according to well diameter and head, with a maximum flow rate exceeding 500m³/h.
Heading distances up to 300 meters, easily addressing the challenges of deep well water extraction.
2. Ultra-Long Life, Durable and Reliable
The pump body and impeller are made of all-stainless steel 304/316L, resisting corrosion and wear, and suitable for high-mineral water.
The built-in high-quality submersible motor, with IP68 protection and Class F insulation, ensures long-term stable underwater operation.
The special anti-sand structure effectively prevents sediment from entering the motor cavity, extending service life.
3. Intelligent Energy Saving, Lowering Operating Costs
The efficient hydraulic model design improves power conversion efficiency by over 15%, significantly saving electricity costs.
The optional variable frequency control system enables intelligent flow and pressure adjustment to meet different irrigation needs during different periods.
4. Easy installation and simple maintenance.
Modular design enables fast on-site installation and supports multi-stage cascade for increased head.
Complete installation instructions and technical drawings are provided, along with remote technical support.
Standardized wearing parts reduce maintenance costs, and spare parts are available worldwide.
5. Factory direct supply, guaranteed quality.
With nearly 40 years of manufacturing experience in our own factory, each pump undergoes a 72-hour full-load test before shipment.
ISO9001 quality management system certification and CE compliance (available upon request).
Two-year warranty and lifetime technical support.
293HP (220kW) High-Flow Deep Well Submersible Pump Typical Applications
Large-Scale Farmland Irrigation Systems
Efficient Water-Saving Irrigation for Orchards and Greenhouses
Deep Well Water Extraction and Urban Water Supply Booster
Mine Dewatering and Construction Site Dewatering
Industrial Cooling Water Circulation Systems
Technical Specifications
Material: Cast Iron; Stainless Steel or Cast Iron
Flow Range: 5 - 1500 m³/h
Head Range: 10 - 600 m
Power: 3 kW - 100 kW
Voltage: Three-phase 220V, 380V, 415V, 440V, 460V, 690V, 1000V, 1140V, 300V, 6000V, etc., customizable
Levels: [e.g., 10 - 30]
Applicable Well Diameters: 3", 4", 5", 6", 7", 8", 9", 10"
Operating Temperature: 0°C - 40°C (water temperature)
FAQ
Q: How long can the pump last in saltwater environments?
A: Our measured lifespan exceeds 10 years (compared to 3-5 years for standard pumps). We offer a 5-year warranty, far exceeding the industry standard.
Q: Can it be used in seawater desalination systems?
A: We can customize low-flow, high-precision models. We are ISO 14001 certified, ensuring pure, contaminant-free water quality.
